Honed Tubes

Honed Tubes Manufacturer
and Supplier in India

Excel Hone is a trusted Honed Tubes manufacturer and supplier in India, delivering precision-finished tubes for 3 decades and over engineered for hydraulic, pneumatic, and high-accuracy industrial applications. Our honed tubes are produced using advanced honing technology to achieve tight dimensional tolerances, superior internal surface finishes, and consistent bore geometry across long lengths.

Designed to support high-pressure and precision-driven systems, Excel Hone’s honed tubes ensure smooth piston movement, extended seal life, and reliable performance in demanding operating conditions.

Specifications

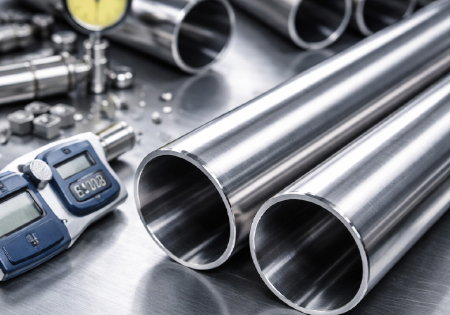

Honed Tube Specifications

As an experienced Honed Tubes supplier in India, Excel Hone offers advanced machining and finishing capabilities to meet diverse project specifications in different types of steels.

Dimensional Range:

  • Internal Diameter (ID): 40 mm to 1500 mm
  • Wall Thickness: Standard and non-standard thickness available as per requirement
  • Length Capability: Honing of tubes and barrels up to 12 meters (Extendable on request)
Panel 1

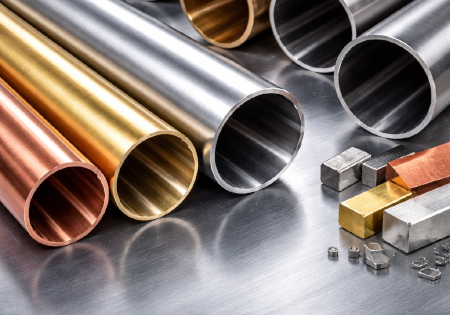

Material We Offered

We manufacture honed tubes using a wide range of ferrous and non-ferrous materials to suit varied industrial conditions.

  • Non-Ferrous Materials: Stainless steel grades, Aluminium
  • Special & Engineered Steels: Low-temperature steels, Heat-treated steels. Steels with customized Yield Strength (YS), Tensile Strength (TS), and impact properties.
  • Standard Alloy Steels: EN Grades, ASTMA Grades, St 52, E-355, etc
Panel 1

Surface Finish & Coating Options

Excel Hone delivers superior internal finishes tailored to hydraulic and precision applications.

  • Internal Surface Finish (ID): Ra ≤ 0.4 µm or better as per requirement
  • Processes Available: Honing with surface coatings as required
  • Coating Options: Hard chrome plating, Electroless nickel plating (ENP), Phosphating These finishes enhance wear resistance, corrosion protection, and operational life.
Panel 1

Quality Assurance & Inspection

As a quality-focused Honed Tubes manufacturer in India, Excel Hone ensures strict inspection and documentation at every stage.

  • Raw Material Reports: Chemical, Physical and UT reports
  • Test Certificates: NABL-approved laboratory reports
  • NDT Reports: Provided as required
  • Dimensional Inspection: PDIR available for every tube
  • Third-Party Inspection (TPI):Accepted
  • Customer Inspection:Welcome
Panel 1

Applications

Excel Hone’s honed tubes are widely used in applications where internal accuracy and surface finish are critical, including:

These tubes are suitable for both standard and customized industrial requirements.

  • Hydraulic cylinders

  • Pneumatic cylinders

  • Precision mechanical components

  • Telescopic cylinder assemblies

  • Heavy engineering and industrial equipment

FAQ

1. What are honed tubes used for?
Honed tubes are primarily used in hydraulic and pneumatic cylinders where smooth internal surfaces, dimensional accuracy, and consistent bore geometry are essential for performance and seal life.
2. Are you a honed tubes manufacturer and supplier in India?
Yes, Excel Hone is a reliable honed tubes manufacturer and supplier in India, serving hydraulic, industrial, and heavy engineering sectors.
3. What surface finish can you achieve on honed tubes?
We can achieve internal surface finishes of Ra 0.4 µm or better, with options for hard chrome plating or ENP based on application needs.
4. Do you offer customized honed tubes?
Yes, non-standard dimensions, wall thicknesses, materials, coatings, and machining features are available as per customer specifications.
